DH Robotics – DH-3
DH Robotics – DH-3
excl. VAT
Couldn't load pickup availability
Adaptive electric three-finger gripper for flexible handling of differently shaped components.
Description

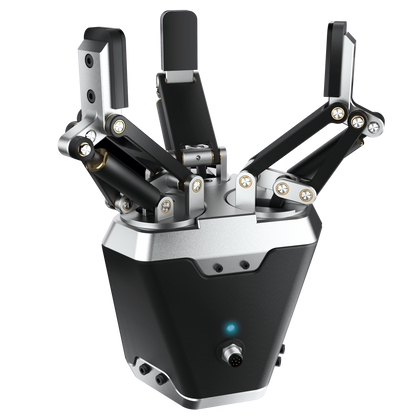

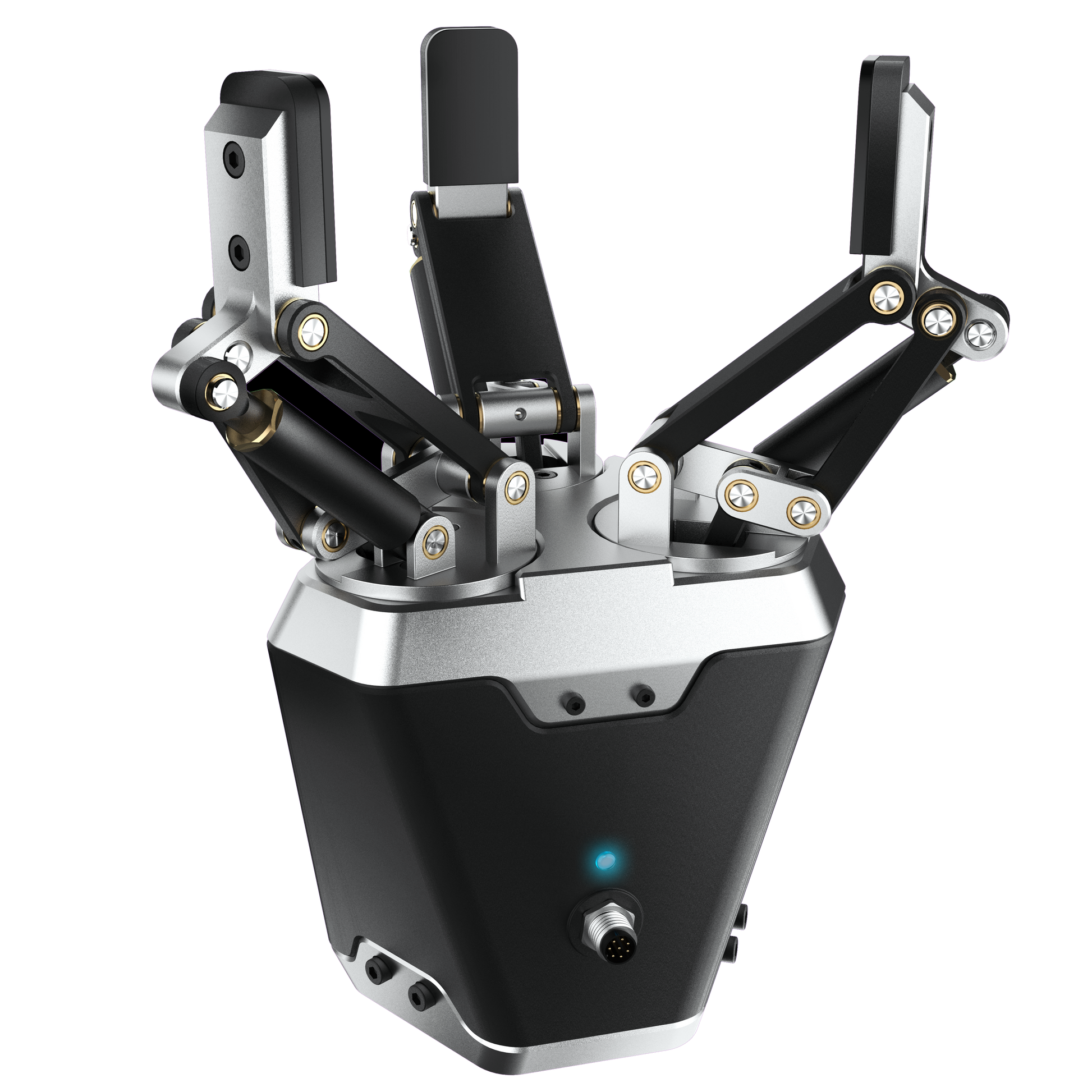

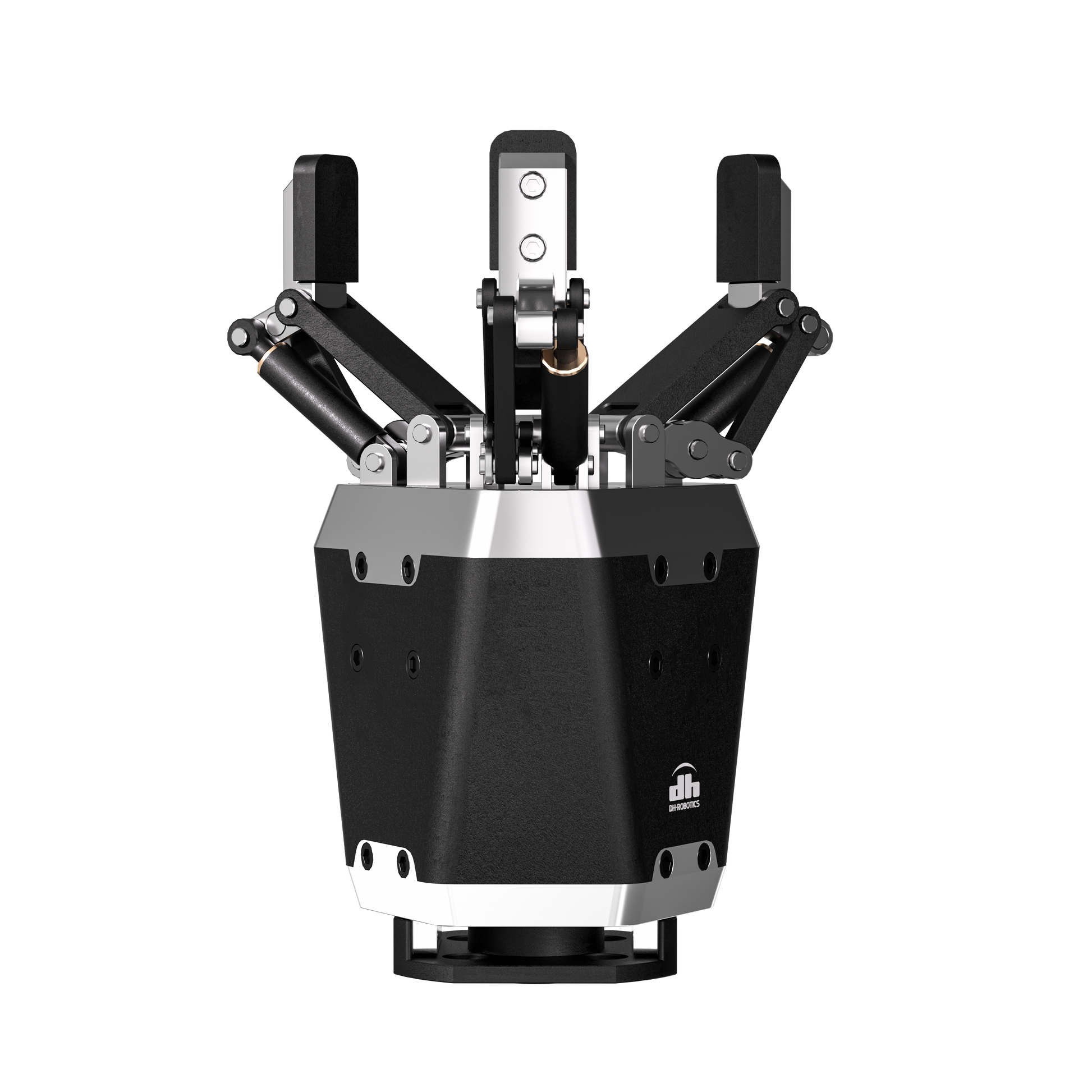

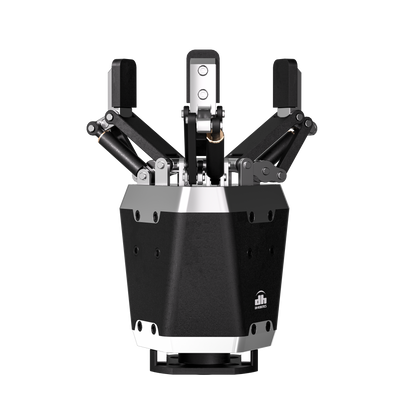

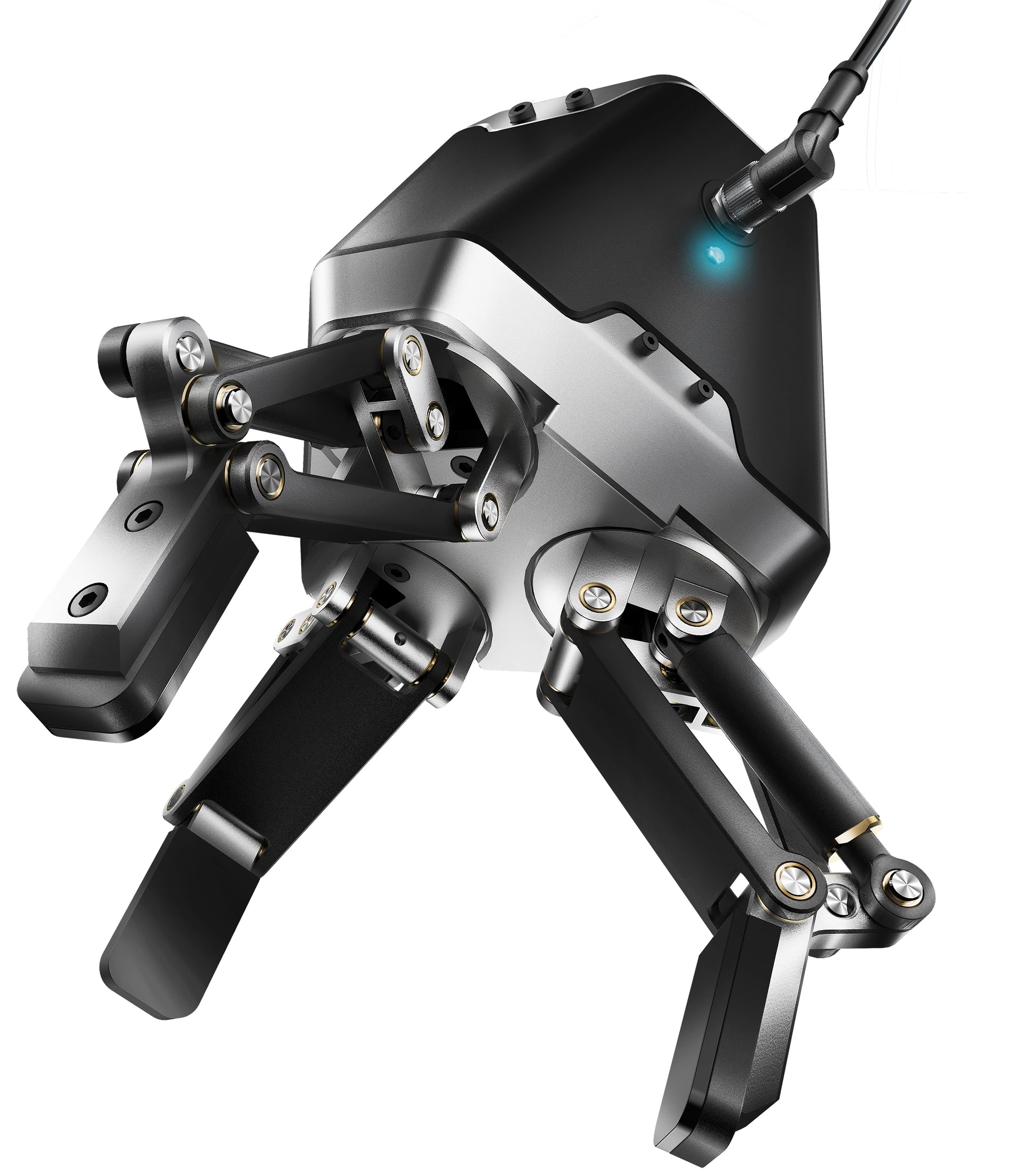

The DH-3 from DH-Robotics is an electric three-finger gripper whose long stroke and variable gripping force make it particularly suitable for components with complex geometries. Thanks to its adaptive finger movement, round, irregular, or delicate workpieces can be handled safely and gently.
With its integrated controller, flexible communication interfaces, and robust construction, the DH-3 offers a reliable solution for collaborative robot applications and industrial automation. Typical applications include assembly, testing, and handling in manufacturing.
specification
| feature | Value |
|---|---|
| Max. payload | 1.8 kg (recommended) |
| Weight | 1.68 kg |
| Max. gripping force | 10–60 N (per finger) |
| Hub | 106 mm parallel - 122 mm centric |
| Protection class | IP40 |
| communication | RS485 / Modbus, Digital I/O; optionally PROFINET, EtherCAT |
| Connections | n.a. |
| Operating temperature | 0–40 °C |
| Power supply | 24 V DC ±10% |
| Robot flange | ISO 9409-1 compliant |
Scope of delivery
- Gripper DH-Robotics DH-3
- Quick guide / documentation
- Communication cable/adapter depending on the selected interface
Notes
This item is available in various configurations. The price shown refers to a sample configuration. Please contact us before ordering so we can work together to find the optimal configuration for your needs.
Made-to-order item , delivery time approx. 2–4 weeks.
All information about the product and technical data is provided without guarantee.
