impaqt robotics - pneumagiQ PQ180
impaqt robotics - pneumagiQ PQ180
excl. VAT
Couldn't load pickup availability

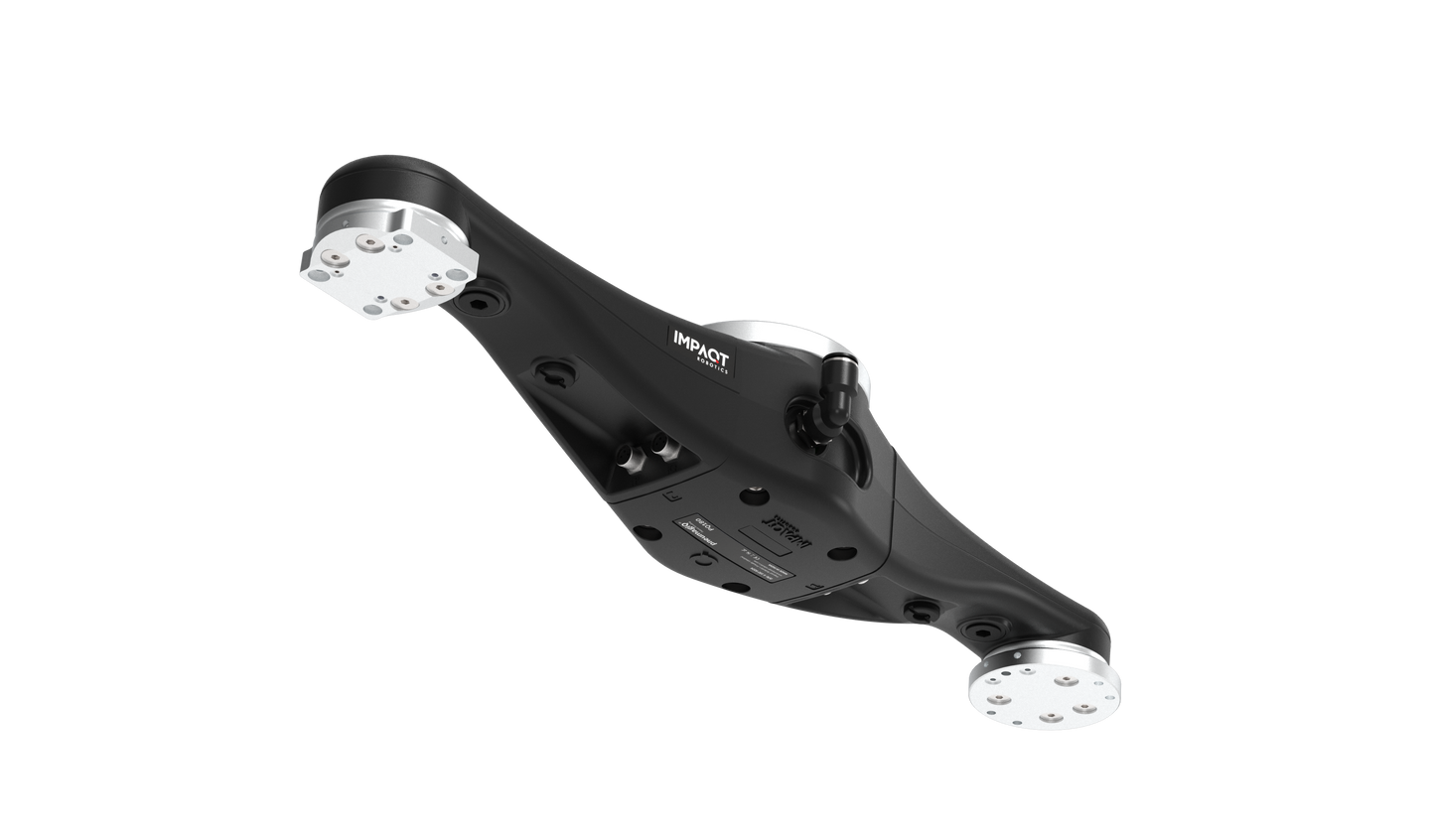

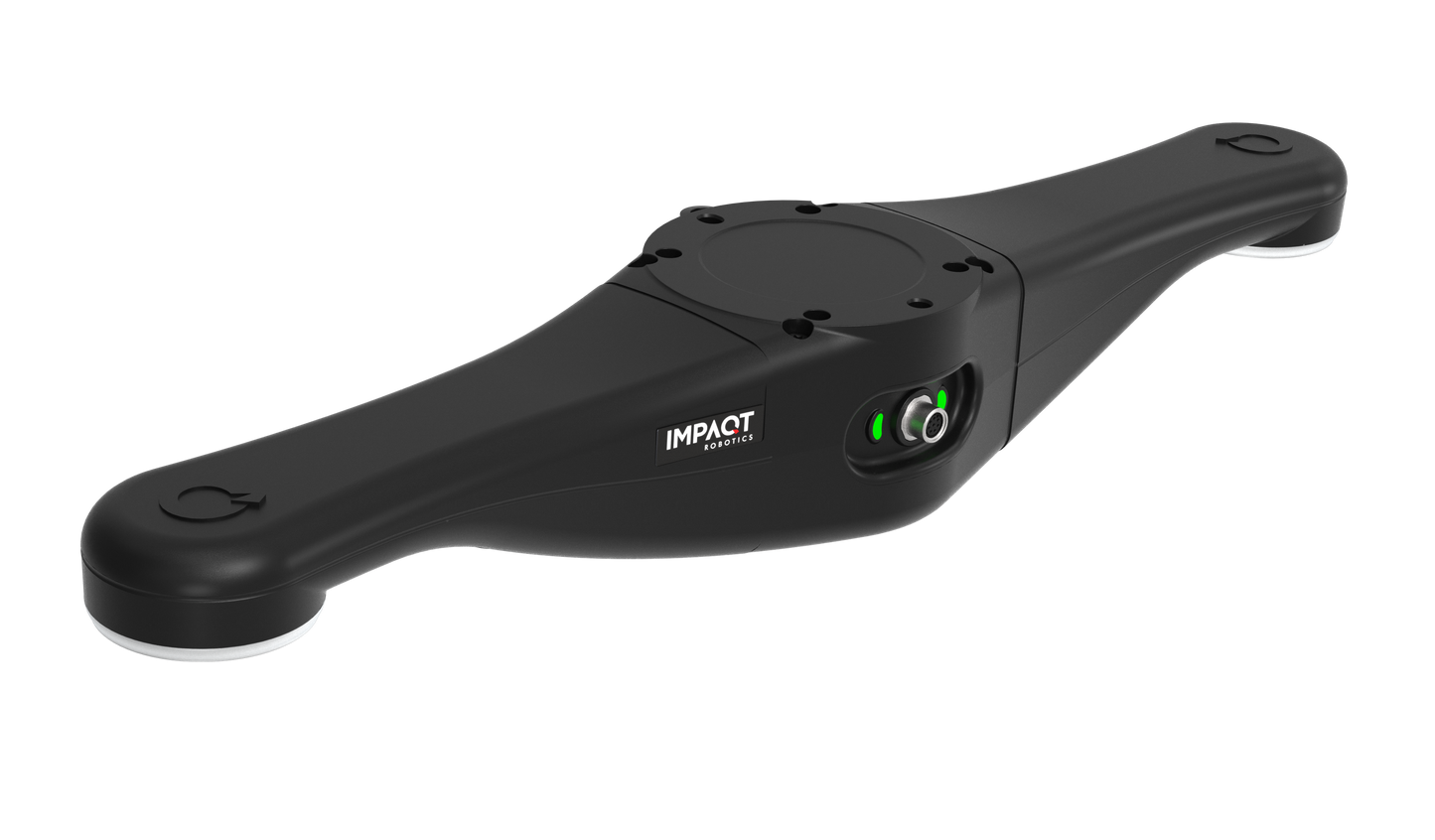

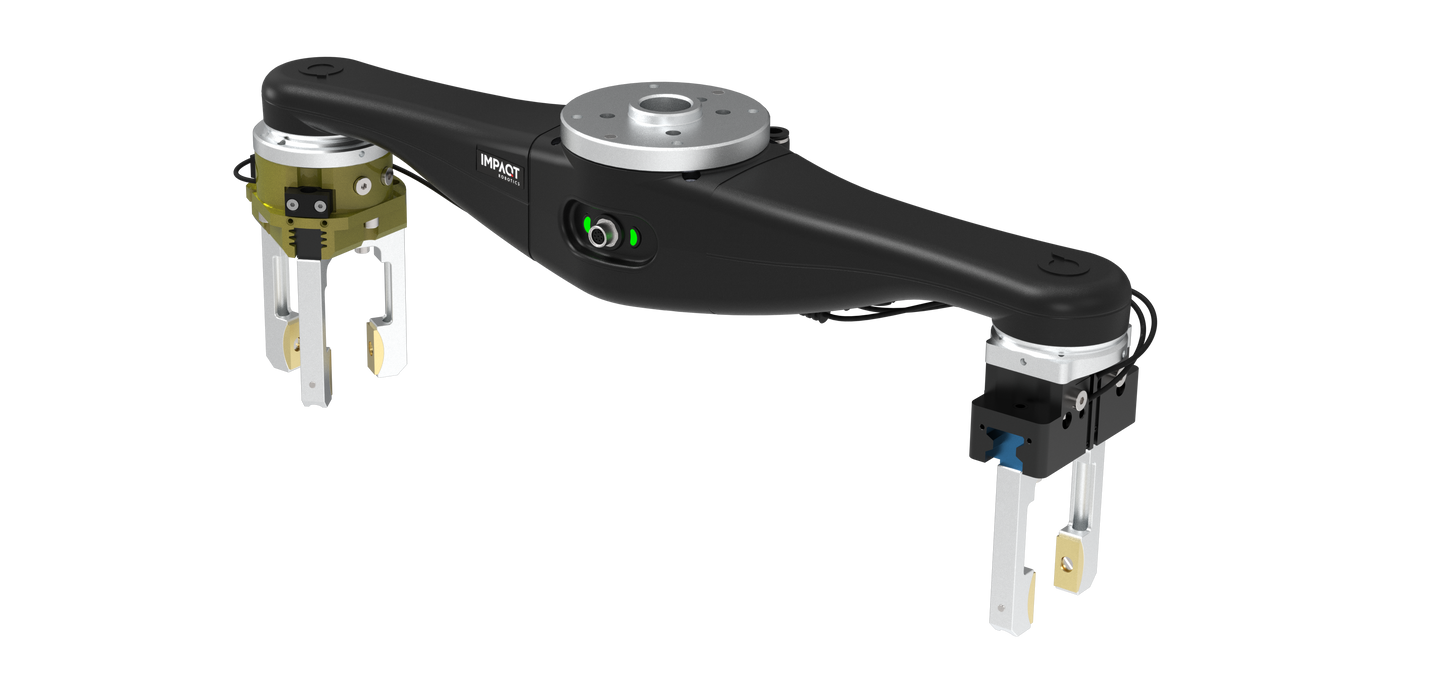

The pneumagiQ PQ180 from Impaqt Robotics is a compact end-of-arm tool (EOAT) with a unique 180° offset capability for dual pneumatic tools, ideal for material handling and machine loading. With its 200 mm reach extension, it increases the robot's usability in tight environments and improves the working radius. The PQ180 is IP66 certified, making it suitable for harsh industrial applications, while its four sensor ports eliminate the need for long cabling. Weighing 870 g and a maximum load capacity of 5 kg, it optimizes the robot payload without compromising performance. The integrated air blow-off ports enable quick cleaning of surfaces and help increase efficiency in automated processes.
Specification:
Max. payload (per tool) | 3.5 kg |
Weight | 870 g |
Pneumatic end effectors | 2 |
offset angle between end effectors | 180° |
protection class | IP66 |
communication | Modbus RTU, URCap |
connections | M8 8-pin for I/O, Ø 8 mm for air |
operating temperature | +5°C to 50°C |
power supply | 24V DC, 600 mA |
This article is available in various configurations. The price indicated refers to an example configuration. Please contact us before ordering so that together we can find the optimal configuration for your requirements. All information about the product and the technical data is provided without guarantee.
Made to order item, delivery time approx. 2-4 weeks
