SMC

SMC - pneumatic 2-finger gripper RMHZ2

SMC - pneumatic 2-finger gripper RMHZ2

Regular price €3.999,04 EUR
Regular price Sale price €3.999,04 EUR
Sale Sold out

excl. VAT

The Solution Kit is the perfect plug-and-play solution for companies that already own a robot or cobot but need a reliable and adaptable gripping tool. This turnkey kit is specifically designed to optimize your automation processes and is ready to use immediately.

The kit includes the following components:

  • SMC Pneumatic 2-Finger Gripper RMHF2
  • Custom-made Gripper Fingers: Individually tailored fingers optimally designed for your product (3D-printed in Onyx, reinforced with fibers if needed).
  • Remote Support: 90 minutes of expert support from a grasp monkey application engineer to assist with setup and commissioning.
  • Storage and Transport Container: A durable container with operational labeling for secure storage and easy transport.
  • Pneumatic Valve and Maintenance Unit
  • Pneumatic Hose (20m)
  • Straps for Securing Pneumatic Hoses to the Robot Arm

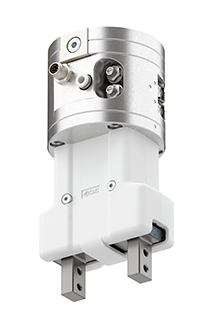

The SMC RMHZ2 pneumatic gripper is ideal for collaborative robot applications. With a holding force of up to 72.2 N (internal) and 54.2 N (external) and an opening/closing stroke of 14 mm, the RMHZ2 offers excellent precision and stability when handling workpieces. The flange conforms to ISO 9409-1-50-4-M6 and can be used with a wide range of robot brands, including Universal Robots, FANUC and Yaskawa. It is compact and lightweight, weighing just 638 g. The built-in solenoid valve control and the ability to integrate signal transmitters make the RMHZ2 easy to install and versatile. The robust construction and dust-proof design make it suitable for industrial environments.

Specification:

holding power Inside: 72.2 N; Outside: 54.2 N
Weight 638 g
opening/closing stroke 14 mm (both sides)
Max. operating frequency 120 cycles per minute
operating pressure 0.1 to 0.7 MPa
operating temperature -10 to 50 °C
medium compressed air
Connection M8, 8-pin connector; Ø 4 mm air connection



This item is available in various configurations. Please contact us before placing your order so that together we can find the ideal configuration for you.

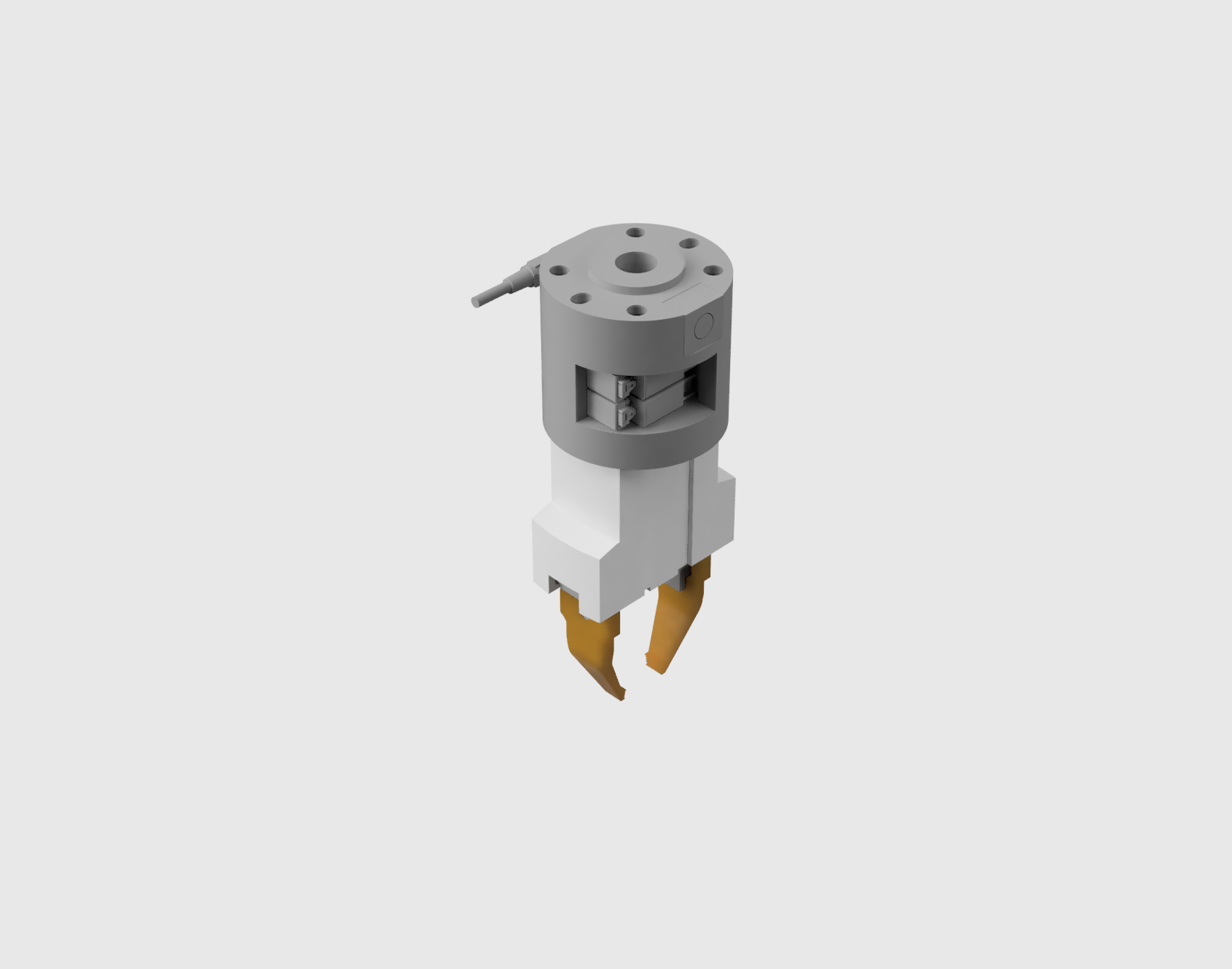

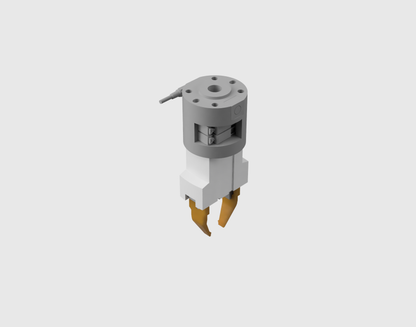

The images shown are product examples.

Made to order item, delivery time approx. 2-4 weeks
